Der "neue" große Mitspieler im DLP-Markt, Planar, setzt sein umfassendes Heimkino-Lineup fort: Mit gleich drei Modellen bekommt die FullHD-DLP (1920x1080) Gemeinde Zuwachs. LCD und LCOS bekommen endlich ernsthafte Konkurrenz: Die Rede ist von den Modellen PD8120, PD8130 und PD8150.
Das Einstiegsmodell dieses neuen Line-Ups ist der PD8120, dessen technischen Eckdaten bereits eine beeindruckende Leistung erwarten lassen.
Besonders lobenswert ist die Tatsache, dass Planar die derzeitigen Kundenwünsche in Sachen Helligkeit, Kontrast und Aufstellungsflexibilität anscheinend ernst genommen hat: Mit 1200 Lumen und einem Kontrastverhältnis von 5000:1 verspricht der 8120, Helligkeit mit DLP-typischer Bildtiefe zu verbinden. Für die notwendinge Bildschärfe bei herkömmlichem SD-Material sorgt zudem der Scalerchip schlechthin, ein Silicon Optix HQV, wie er sich in letzter Zeit besonders im Mitsubishi HC5000 bereits bewährt hat. Zu diesen leistungsäfhigen Bildaspekten gesellt sich ein Lensshift von +120%/-80%.
Wer noch mehr Leistung wünscht, der hat die Auswahl zwischen den beiden großen Brüdern 8130 und 8150. Sie fallen bereits optisch edel mit schwarzem Klavierlack als High-End Produkte auf.
Doch nicht nur das Äußere, auch bei der Bildqualität werden noch weitere Qualitätssprünge versprochen. So sind die beiden Modelle mit 10000:1 (PD8130) und 15000:1 (PD8150) Kontrastverhältnis wahre Plastizitätswunder, die es so bisher noch nicht am DLP-Markt gegeben hat. Sollten sich diese Werksangaben bestätigen, könnte die LCD-Konkurrenz in Sachen Bildtiefe ernsthafte Konkurrenz bekommen.
Auch die Signalverarbeitung ist mit Gennum VXP-Processing auf Studioniveau und sollte Referenz-Leistung erreichen. Zwei HDMI1.3 Eingänge sorgen für die zukunftsichere Signalkompatibilität. Durch motorisiertem Lens-Shift und zwei verschiedenen Optikvarianten sollte auch die Aufstellung in jedem Raum möglich sein.

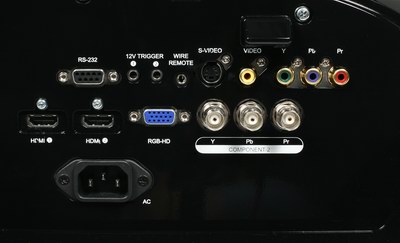

Die Anschlüsse sind elegant hinter einer Klappe versteckt
Wir freuen uns auf baldige Tests dieser DLP-Projektoren neuester Generation, die wir, sobald erste Testgeräte zur Verfügung stehen, durchführen und veröffentlichen werden. Es wird Zeit, dass sich die bewährte DLP-Technik zurück meldet und der immer stärker werdenden LCD- und LCOS Technologie Paroli bietet. Konkurrenz belebt das Geschäft, wirkt sich positiv auf die Qualität aus und sorgt für günstige Preise... 2007 wird eines der interessantesten Jahre in der Geschiche des Heimkinos...
Wir verbleiben mit den detaillierten technischen Daten,
Ihr Cine4Home Team
1. Product Information PD8120
Signal Compatibility
Video Support: |
HDMI and DVI with HDCP for digital video, Component and RGB HDTV (1080p, 1080i, 720p), Component and RGB EDTV (576p, 480p), Component, Composite and S-Video SDTV (576i, 480i), RGB SCART with adapter, NTSC (M,4.43), PAL (B,G,H,I,N,M), SECAM (M) |
Computer Support: |
HDTV, Computer up to 1920x1080, Macintosh® |
Communication: |
RS-232 (discrete commands and SW upgrades), wired IR repeater, screen trigger, remote control |
|
|
Connectivity
(2) HDMI with HDCP: |
HDTV RGB and Component, EDTV, SDTV, HDMI (High Definition Multimedia Interface) with HDCP (High Bandwidth Digital Content Protection), DVI via adapter |
(1) Component (3 x RCA, gold): |
HDTV, EDTV, SDTV, SCART RGBS: RGBS via component and composite inputs (adapter not included) |
(1) RGB/Component (5 x BNC, 75 ࡎ): |
HDTV, EDTV, SDTV, RGBHV, YUV |
(1) S-Video (4-pin mini-DIN): |
SDTV |
(1) Composite (RCA, gold): |
SDTV |
(1) 3.5mm mini jack: |
12V (+/-1.5V) screen trigger (250mA) |
(1) RJ-11 |
RS-232 for discrete control and SW upgrades |
(1) 3.5mm mini jack |
IR input for Niles/Xantech compatible IR repeater systems |
|
|
|
|
|
|
|
|
Performance
Microdisplay: |
Texas Instruments DLP® 1080p DMD |
Native Resolution: |
Full HD, 1920 x 1080 (2,073,600 pixels) |
Aspect Ratios: |
Native (Pixel-to-Pixel), 16:9, Letterbox, 4:3, 4:3 narrow, Letterbox (Anamorphic lens compatible) |
Projection Lens: |
All glass, 1:2x manual zoom |
Throw Ratios (2 lens options): |
1.85 - 2.20 (distance/width) |
Lens Shift (optical): |
+120%,-80% (vertical, ceiling mounted, % half height) - motorized |
Video Lumens: |
1,300 ANSI lumens (max) |
Contrast Ratio: |
3000:1 (typical) |
Cooling Performance: |
High efficiency adaptive voltage cooling with low system acoustic noise level (27dBA) and low light pollution cabinet |
Projection Modes: |
Front, Rear, Ceiling (front/rear) |
Lamp: |
User replaceable 170/200W HPM (selectable), 3000 hour lifetime* |
Video Processing: |
Planar customized Silicon Optix HQV with 10 bit independent dual channel image processing, true 1080i deinterlacing, MPEG artifact reduction (block and mosquito noise), latest motion adaptive processing, 3D noise reduction, detail enhancement, rich color processing and noise reduction, less than one frame latency |
Calibration: |
Full RGB gain/offset control (White Balance), Gamma, Contrast, Color Temperature, Brightness |
|
|
|
|
General
Dimensions: |
21.2" (538mm) L x 18" (457mm) W x 7.6" (193mm) H |
Weight: |
28 lb (12.7 kg) |
Operating Temperature: |
50° F (10° C) - 95° F (35° C) |
Operating Altitude: |
Sea Level - 4,600Ft (1,400m), 85° F (30° C) up to 10,000Ft (3,000m) |
Operating Humidity: |
10% - 90% non-condensing |
Universal Power Supply: |
100V - 240V at 50-60Hz (auto-ranging), true soft power |
Regulatory: |
FCC Part 15 Class B, CE Class B, UL, cUL, CB, RoHS, WEEE, local conformances as required |
Menu Languages: |
English, French, Italian, German, Spanish, Swedish, Traditional Chinese, Simplified Chinese, Japanese, Korean, Portuguese, Russian |
2. Product Information PD8130
Signal Compatibility
Video Support: |
HDMI and DVI with HDCP for digital video, Component and RGB HDTV (1080p, 1080i, 720p), Component and RGB EDTV (576p, 480p), Component, Composite and S-Video SDTV (576i, 480i), RGB SCART with adapter, NTSC (M,4.43), PAL (B,G,H,I,N,M), SECAM (M) |
Computer Support: |
HDTV, Computer up to 1920 x 1080, Macintosh® |
Communication: |
RS-232 (discrete commands and SW upgrades), wired IR repeater, screen triggers, on-board keypad |
|
|
Connectivity
(2) HDMI V1.3 with HDCP: |
HDTV RGB and Component, EDTV, SDTV, HDMI (High Definition Multimedia Interface) with HDCP (High Bandwidth Digital Content Protection), DVI via adapter |
(1) Component (3 x RCA, gold): |
HDTV, EDTV, SDTV, SCART RGBS: RGBS via component and composite inputs (adapter not included) |
(1) RGB (HD15): |
HDTV, RGBHV, YUV, EDTV |
(1) S-Video (4-pin mini-DIN): |
SDTV |
(1) Composite (RCA, gold): |
SDTV |
(1) 3.5mm mini jack: |
12V (+/-1.5V) screen trigger (250 mA), programmable |
(1) 9 Pin D-sub: |
RS-232 for discrete control and SW upgrades |
(1) 3.5mm mini jack: |
IR input for Niles/Xantech compatible IR repeater systems |
|
|
|
|
|
|
|
|
Performance
Microdisplay: |
Texas Instruments DLP® 1080p DMD |
Native Resolution: |
Full HD, 1920 x 1080 (2,073,600 pixels) |
Aspect Ratios: |
Native (Pixel-to-Pixel), 16:9, Letterbox, 4:3, 4:3 narrow, Letterbox (Anamorphic lens compatible) |
Projection Lens: |
All glass, F/2.5~2.71, f = 39.1~50.1mm, 1.3x manual zoom, made in Japan |
Throw Ratios: |
1.85 – 2.40 (distance/width) – Standard lens |
Lens Shift (optical): |
+100% to +120% (vertical, ceiling mounted, % half height) |
Video Lumens: |
1,000 ANSI lumens (max) calibrated at D65 |
Contrast Ratio: |
10,000:1 typical (sequential with DynamicBlack on) |
Cooling Performance: |
High efficiency adaptive voltage side-to-side cooling with low system acoustic noise level (29dBA) and low light pollution cabinet |
Projection Modes: |
Front, Rear, Ceiling (front/rear) |
Lamp: |
User replaceable 180/230W HPM (selectable), 4000 hour lifetime* |
Video Processing: |
Planar customized Gennum GF9450 with 10 bit independent dual channel image processing, true 1080i deinterlacing, MPEG artifact reduction (block and mosquito noise), latest motion adaptive processing, 3D noise reduction, detail enhancement, rich color processing and noise reduction, less than one frame latency. |
Calibration: |
Full RGB gain/offset control (White Balance), Gamma, Contrast, Color Temperature, Brightness |
|
|
|
|
General
Dimensions: |
20.8" (530mm) L x 17.9" (455mm) W x 7.8" (200mm) H |
Weight: |
22 lb (10 kg) |
Operating Temperature: |
50° F (10° C) - 104° F (40° C) |
Operating Altitude: |
Sea Level - 7,500 Ft (2,300m), 95° F (35° C) up to 10,000 Ft |
Operating Humidity: |
0% - 85% non-condensing |
Universal Power Supply: |
100V - 240V at 50-60Hz (auto-ranging), true soft power |
Regulatory: |
FCC Part 15 Class B, CE Class B, UL, cUL, CB, RoHS, WEEE, local conformances as required |
Menu Languages: |
English, French, Italian, German, Spanish, Swedish, Traditional Chinese, Simplified Chinese, Japanese, Korean, Portuguese, Russian |
3. Product Information PD8150
Signal Compatibility
| Video Support: | HDMI and DVI with HDCP for digital video, Component and RGB HDTV (1080p, 1080i, 720p), Component and RGB EDTV (576p, 480p), Component, Composite and S-Video SDTV (576i, 480i), RGB SCART with adapter, NTSC/NTSC 4.43, PAL (B,G)/(D,K)/I/M/N, SECAM |
|---|---|
| Computer Support: | Digital and Analog up to 1920x1080 @ 60Hz, Macintosh® |
| Communication: | RS-232 (discrete commands and SW upgrades), IR remote, on-board keypad |
Connectivity
| (2) HDMI V1.3 with HDCP: | HDTV RGB and Component, EDTV, SDTV, HDMI (High Definition Multimedia Interface) with HDCP (High Bandwidth Digital Content Protection), DVI via adapter |
|---|---|
| (1) Component (3 x RCA, gold): | HDTV, EDTV, SDTV, SCART RGBS: RGBS via component and composite inputs (adapter not included) |
| (1) Component (3 x BNC, 75 ohm): | HDTV, EDTV, SDTV |
| (1) RGB (HD15): | HDTV, RGBHV, YUV, EDTV |
| (1) S-Video (4-pin mini-DIN): | SDTV |
| (1) Composite (RCA, gold): | SDTV |
| (2) 3.5mm mini jack: | 12V (+/-1.5V) screen trigger (250mA) |
| (1) 9 pin D-sub | RS-232 for discrete control and SW upgrades |
| (1) 3.5mm mini jack | IR input for Niles/Xantech compatible IR repeater systems |
Performance
| Microdisplay: | Texas Instruments DLP® 1080p DMD |
|---|---|
| Native Resolution: | Full HD, 1920 x 1080 (2,073,600 pixels) |
| Aspect Ratios: | Native (Pixel-to-Pixel), 16:9, Letterbox, 4:3, 4:3 narrow, Letterbox (Anamorphic lens compatible) |
| Projection Lens: | All glass, F/2.5~2.71, f = 39.1~50.1mm, 1.3x manual zoom, made in Japan |
| Throw Ratios (2 lens options): | 1.85 – 2.40 (distance/width) – Standard lens 1.56 – 1.86 (distance/width) – Optional short throw lens |
| Lens Shift (optical): | +100%,-50% (vertical, ceiling mounted, % half height) +/-15% (% half width) |
| Video Lumens: | 1,000 ANSI lumens (max) calibrated at D65 |
| Contrast Ratio: | 15,000:1 typical (sequential with DynamicBlack on) |
| Cooling Performance: | High efficiency adaptive voltage side-to-side cooling with low system acoustic noise level (29dBA) and low light pollution cabinet |
| Projection Modes: | Front, Rear, Ceiling (front/rear) |
| Lamp: | User replaceable 180/230W HPM (selectable), 4000 hour lifetime* |
| Video Processing: | Planar customized Gennum GF9450 with 10 bit independent dual channel image processing, true 1080i deinterlacing, MPEG artifact reduction (block and mosquito noise), latest motion adaptive processing, 3D noise reduction, detail enhancement, rich color processing and noise reduction, less than one frame latency. |
| Calibration: | Full RGB gain/offset control (White Balance), Gamma, Contrast, Color Temperature, Brightness |
General
| Dimensions: | 20.8" (530mm) L x 17.9" (455mm) W x 7.8" (200mm) H |
|---|---|
| Weight: | 22 lb (10 kg) |
| Operating Temperature: | 50° F (10° C) - 104° F (40° C) |
| Operating Altitude: | Sea Level - 7,500 Ft (2,300m), 95° F (35° C) up to 10,000 Ft |
| Operating Humidity: | 0% - 85% non-condensing |
| Universal Power Supply: | 100V - 240V at 50-60Hz (auto-ranging), true soft power |
| Regulatory: | FCC Part 15 Class B, CE Class B, UL, cUL, CB, RoHS, WEEE, local conformances as required |
| Menu Languages: | English, French, Italian, German, Spanish, Swedish, Traditional Chinese, Simplified Chinese, Japanese, Korean, Portuguese, Russian |
Weitere Informationen:
http://www.planar.com/hometheater/projectors/
Ihr
Cine4Home-Team
